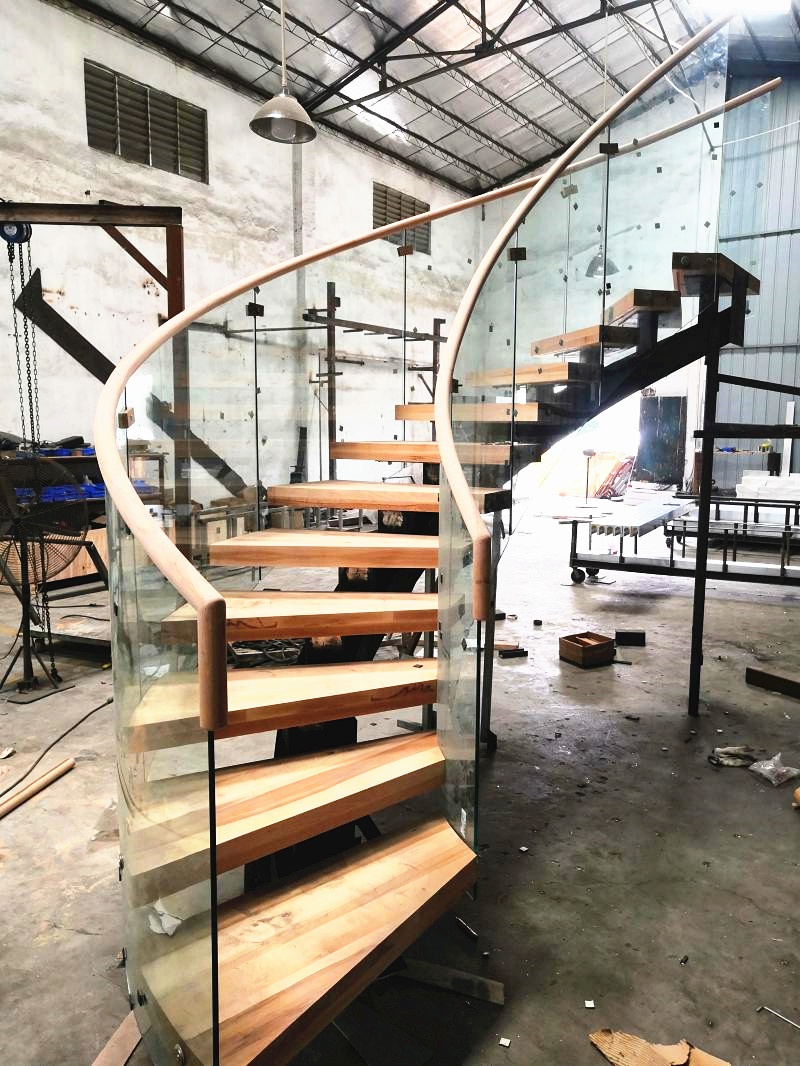

Sided stringer staircase with glass railing
The sided stringer staircase with glass railing.
Curved stairs are the stairs with a flight resembling an arch in its shape. The treas in such stairs are wedge-shaped. Though they are bending the structure materials, they are elegant and graceful in appearance.
Arched stairs resemble an arch in shape and have wedge shaped steps.
There are a few parts of the helical staircase need to be know by our buyer:
- Stringer (bespoke available)
- Treads (varient)
- Railing/balustrade (varient)
- handrail (varient)
| Stair height/width (regular size) | width:>2300mm/>1500mm |
| Staircase function: | private / commercial /Outdoor/indoor |
| Stringer | carbon steel |
| Treads: | wooden /steel/glass/marble |
| Balustrade | Glass/stainless steel/carbon steel /Aluminum |
| Handrail: | wooden/stainless steel/Aluminum |
Stringer options
| flight stringer mono & double /mm | 100*100*6/ 200*100*6/ 200*200*6 100*100*8 /200*100*8/ 200*200*8 |
| side channel stringer (thickness)/mm | 5+5/6+6/8+8 |
| side mono stringer | (width:300mm)*(thickness:12mm ) |

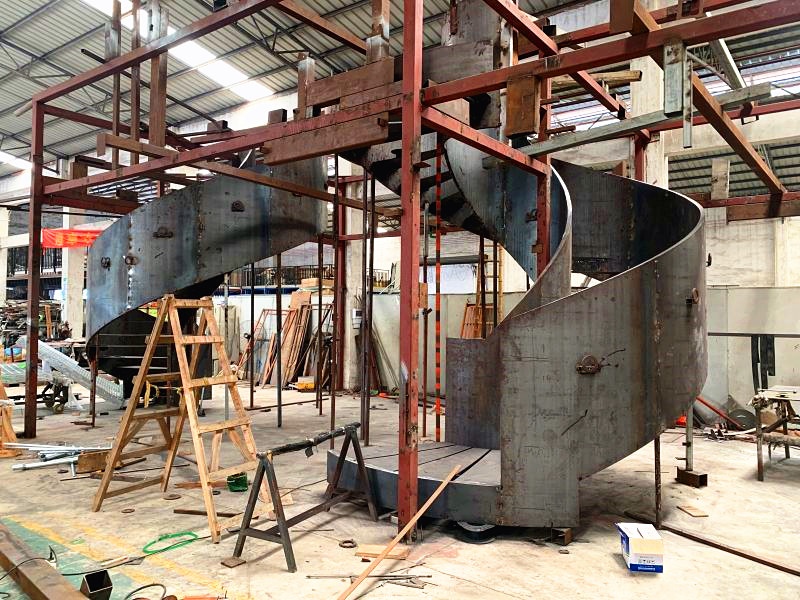

sided mono stringer
sided channel steel stringer
zigzag steel stringer
middle flight stringer
side u channel stringer
Railing options
For more railings design for straight staircase please refer to our railing website :
glass railing
SS Post railing
Cable Railing
Iron railing
Framed Glass railing
Helical staircase Handrail options
wood handrail, stainless handrail ,aluminum handrail and etc.
stainless steel handrail specification
| Dia.(mm) | 38.1/42.4/50.8 |
| Thickness(mm) | 1.0 /1.2/1.35 |
